Heated cattle drinking trough La Buvette MULTI TWIN EL, 200 l, 240 W / 24 V
1 260.00 € VAT 0%
200-litre heated cattle drinking trough. For 6–7 cows at once. Three 80 W heating elements: 240 W / 24 V in total. Two float valves deliver 64 l/min at 3 bar. Includes a ¾″ braided connection hose.
Requires a separate 230/24 V transformer; A502, 400 VA is suitable. Install on a concrete base at least 20 cm high.
Delivery time: 3-6 weeks
Heated cattle drinking trough

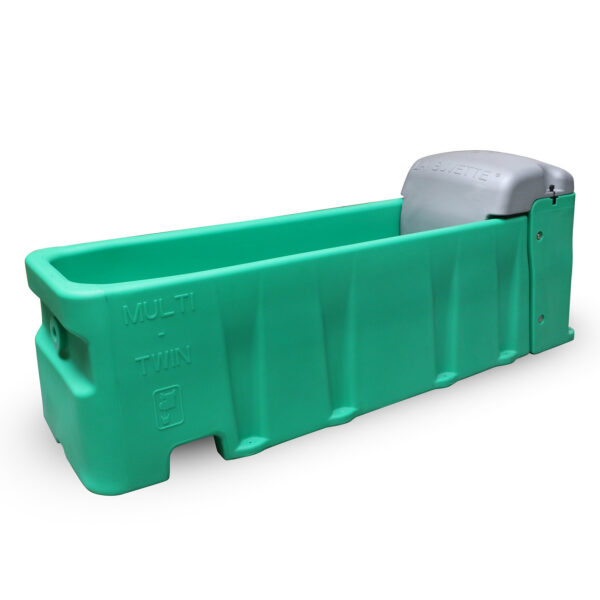

La Buvette MULTI TWIN EL is a 200-litre heated group drinking trough for cattle. Its robust double-walled body is made of high-density polyethylene (HDPE). According to the manufacturer, 6–7 cows can drink simultaneously.
Electric frost protection

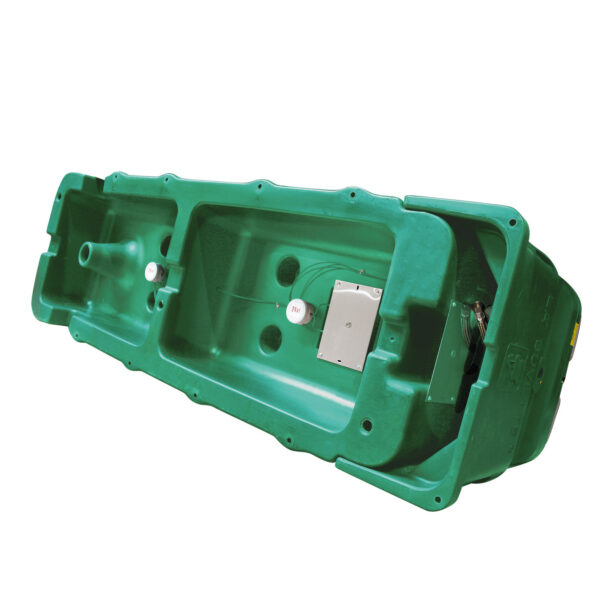

Three 80 W heating elements beneath the trough and inside the service compartment protect the trough, valves and water supply from freezing. Total power is 240 W at 24 V.
A separately ordered 230/24 V transformer is required. The La Buvette A502 400 VA transformer is suitable for one 240 W trough and is listed under related products.
High flow rate and modular design
Two float valves beneath a protective cover maintain a constant water level and deliver a combined 64 l/min at 3 bar. A ¾″ stainless steel braided connection hose is included.
The modular system can be extended with additional troughs. The optional A384 third float valve increases flow to 96 l/min from 3 bar. It can also supply lukewarm water from a milk pre-cooler.
Cleaning and installation
A 10 cm drain opening allows quick emptying. The valves can be accessed without tools. Install the trough on a concrete base at least 20 cm high and connect it as instructed by the manufacturer.
Technical specifications
| Model | MULTI TWIN EL |
|---|---|
| Product code | 2480 |
| Capacity | 200 l |
| Cows drinking simultaneously | 6–7 |
| Heating elements | 3 × 80 W |
| Total power | 240 W |
| Operating voltage | 24 V |
| Transformer | 230/24 V, sold separately; suitable option A502, 400 VA |
| Float valves | 2 |
| Flow rate | 64 l/min at 3 bar |
| Flow with optional A384 valve | 96 l/min from 3 bar |
| Water connection | ¾″ |
| Length | 216.1 cm |
| Width | 71.9 cm |
| Height | 81.2 cm |
| Drain diameter | 10 cm |
| Material | Double-walled high-density polyethylene (HDPE) |
| EAN | 3599150041409 |
Documents
Manufacturer’s installation instructions (PDF)
Exploded parts diagram (PDF)
