Non-electric frost-free drinker La Buvette THERMOLAC 75 GV, 75 l
668.00 € VAT 0%
75-litre non-electric drinker with two insulated balls for cattle and horses. Frost protection to −30 °C requires correct installation and sufficient water turnover; the manual recommends at least 10 cattle.
Delivery time: 3-6 weeks

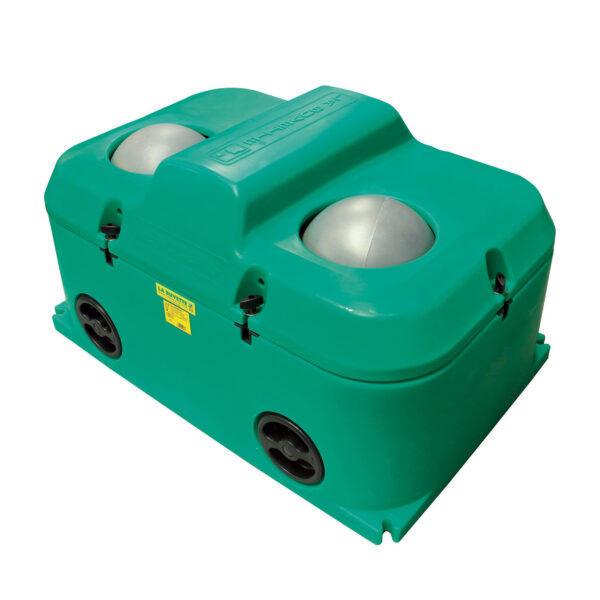

Non-electric frost-free drinker La Buvette THERMOLAC 75 GV is a 75-litre waterer with two insulated drinking balls for cattle and horses. The manufacturer rates it for up to 30 large cattle, indoors or outdoors.
Insulation based on the thermos principle
The double-walled HDPE body and both balls are insulated with polyurethane foam. No electric heating or transformer is required. The manufacturer states water temperatures of about 3–5 °C in winter and 10–12 °C in summer.

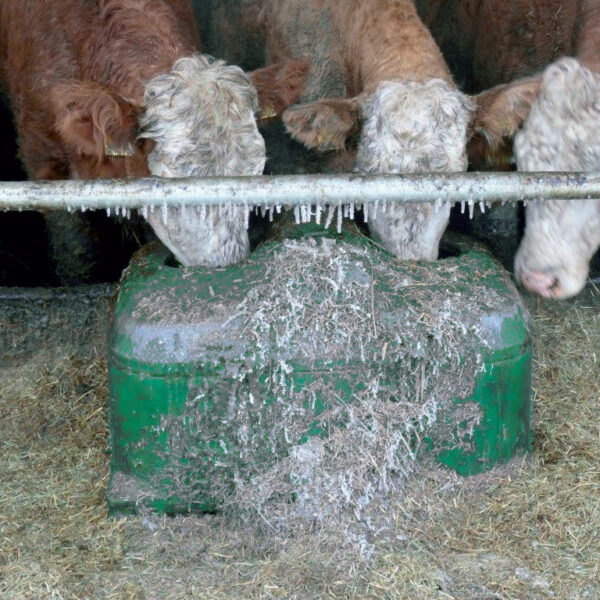

Frost protection and installation conditions
The manufacturer declares frost protection down to −30 °C with correct installation and sufficient water turnover. For optimal frost protection, the installation manual recommends at least 10 cattle per THERMOLAC 75. Install the water connection and pipe insulation according to the manual.
- A float valve maintains a constant water level.
- Stainless steel braided hose, insulating jacket and ground insulation included.
- Two insulated 10 cm drain plugs allow emptying in about 15 seconds, according to the manufacturer.
- The lid opens quickly and fully for cleaning.
Dimensions and specifications
| Product code | 1671 |
|---|---|
| Model | THERMOLAC 75 GV |
| Capacity | 75 l |
| Drinking places | 2 insulated balls |
| Group size | Up to 30 large cattle |
| Frost protection requirements | Manual recommends at least 10 cattle and correct installation |
| Flow rate | 34 l/min at 3 bar (technical data) |
| Water connection | ½″ |
| Maximum water pressure | 4 bar (installation manual) |
| Length | 66 cm |
| Width | 99 cm |
| Height | 53.2 cm (product page) |
| Material and insulation | HDPE, polyurethane foam |
| Electricity required | None |
| EAN | 3599150003377 |
Documents
Manufacturer installation instructions (PDF)
Exploded parts drawing (PDF)
