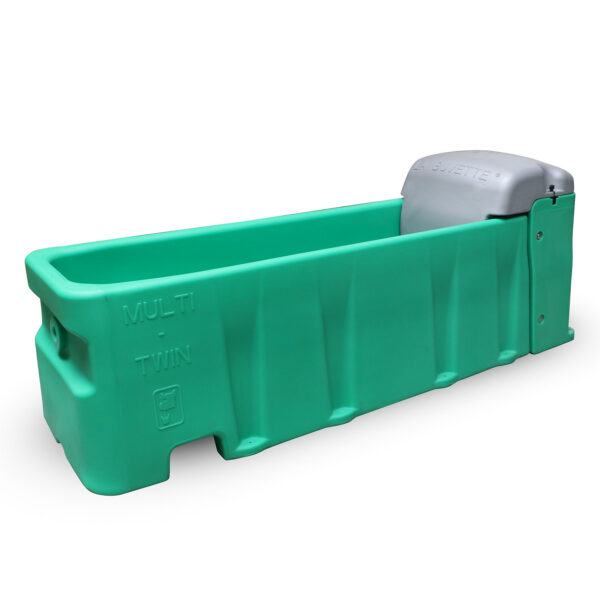

Unheated cattle drinking trough La Buvette MULTI TWIN S, 200 l
743.00 € VAT 0%
200-litre unheated cattle drinking trough. Allows 6–7 cows to drink simultaneously. Two float valves provide 64 l/min at 3 bar. Double-walled HDPE body and included ¾″ braided connection hose.
Modular design can be extended with additional troughs. Install on a concrete base at least 20 cm high.
Delivery time: 3-6 weeks
Unheated cattle drinking trough for large herds
La Buvette MULTI TWIN S is a 200-litre unheated group drinking trough for cattle. Its robust double-walled body is made of high-density polyethylene (HDPE). According to the manufacturer, 6–7 cows can drink at the same trough simultaneously.
High flow rate and modular design
Two float valves beneath a protective cover maintain a constant water level and provide a combined flow rate of 64 l/min at 3 bar. A ¾″ stainless steel braided water connection hose is included.
The modular system can be extended by connecting additional troughs. An optional third float valve, A384, increases the flow rate to 96 l/min from 3 bar. This valve can also supply lukewarm water from a milk pre-cooler. The A384 valve is sold separately.
Cleaning and installation
The 10 cm drain opening allows quick emptying. The valves can be accessed without tools. Install the trough on a concrete base at least 20 cm high.
MULTI TWIN S (2470) is the unheated model. The version with electric frost protection is a separate model, reference 2480.
Technical specifications
| Model | MULTI TWIN S |
|---|---|
| Product code | 2470 |
| Capacity | 200 l |
| Cows drinking simultaneously | 6–7 |
| Heating | None |
| Float valves | 2 |
| Flow rate | 64 l/min at 3 bar |
| Flow rate with optional A384 valve | 96 l/min from 3 bar |
| Water connection | ¾″ |
| Length | 216.1 cm |
| Width | 71.9 cm |
| Height | 81.2 cm |
| Drain diameter | 10 cm |
| Material | High-density polyethylene (HDPE) |
| EAN | 3599150041379 |
Documents
Manufacturer’s installation instructions (PDF)
Exploded parts diagram (PDF)
